1. Support free mixed input of HDMI, DVI, VGA (RGB), SDI, AV (CVBS, audio, S-Video), YPbPr (component) and other signal formats, and full-function multi-category signal output; Bus switching technology: each signal is transmitted through a separate special channel to ensure that the real-time display equipment of all signal images has the function of frequency doubling and line doubling. The image signals are scaled and frequency doubling enhanced, and the signals with different resolutions are processed uniformly to output signals with the same resolution; True cross switching, regardless of signal format, can switch from any input to any output.

2. The main control chip adopts four core exynos8890 processor, which runs faster and the system is more stable;

3. The latest programmable logic FPGA chip Stratix: Emoji: 10 is adopted, the internal core operation mechanism is built, there is no embedded operating system, and the performance is more stable;

4. Dynamic detection technology and TrueLife enhancement technology can effectively eliminate noise and interference;

5. Use 6 5GHz high bandwidth chip, especially clear image;

6. Hdmi1 Version 4, conforming to HDCP standard;

7. Support 1080p HD signal and 3D video signal;

8. HDCP compatible, supporting reproduction, switching and distribution of genuine Blu ray DVD signals;

9. Arbitrary windowing function, picture in picture display function, split display function (optional);

10. Frame synchronization technology is adopted, and any signal supports seamless switching;

11. EDID automatic acquisition technology, which can be obtained automatically as needed to ensure greater compatibility;

12. Support signal timing reorganization, CEC, 36 bit true color technology;

13. Digital synchronous identification processing (DSIP) technology support is adopted;

14. Seamless integration of cmmaw technology and CCSEB power management technology;

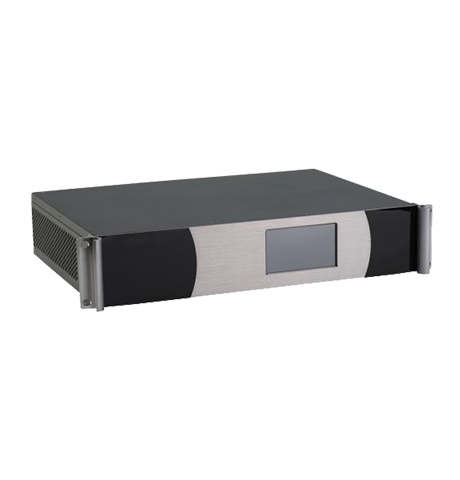

15. Five inch true color touch screen is adopted. During switching, input and output different colors to display the switching working state;

16. The built-in cycle switching function can set the interval and channel arbitrarily;

17. Built in 32 sets of scene storage function, which can be operated directly on the panel;

18. 8-channel input, 8-Channel output, cross mixed signal input and output;

19. The input resolution is adaptive, and the output resolution is arbitrarily adjusted according to the display device;

20. Each input signal supports volume adjustment and color adjustment;

21. 4-way input / output card selection;

22. It has a variety of control modes such as network control, USB, serial port, infrared and panel, and RS232 communication interface, which can be easily used with computers, remote control systems or various remote control devices (such as other control systems);

23. Support network control and online program update, and can expand the module arbitrarily;

24. This product has power-off on-site switching memory protection;

25. The built-in monitoring module can detect various functional modules in the equipment. It can also monitor the working state and working temperature, and has the real-time alarm function of abnormal state;

26. Global wide voltage design, which can adapt to AC 100 ~ 240V, 50 / 60Hz;

27. High quality, mass production, high compatibility and stability, and high cost performance
