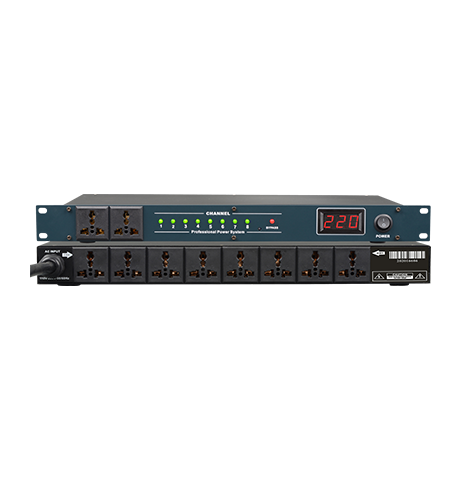

1. Panel color: high grade iron ink green panel

2. Power input conditions (single phase, 3 wires): ac220-240v, 50-60Hz, two phases (three wires: zero, fire, ground)

3. Number of channels: 8-way relay controlled, 2-way universal socket direct, single rated output current: 13A.

4. The controlled output of the relay can bear the maximum single power / total power (reactive power): 2500W / 6000W, the maximum reactive power

5. Output power socket specification: flame retardant ABS material, maximum withstand 13A current, phosphor copper material, standard universal socket

6. Interval time / timing time of each switch: 1s

7. Contact current of output relay: 30A 240VAC

8. Circuit board specification: double-sided fiberboard, secondary thickening and thickening of main power wiring.

9. Power supply specification: built in transformer voltage ac220-240v 50 / 60Hz, optional (switching power supply applicable to global voltage ac90-260v) 50-60Hz

10. Specification of main cable: input cable: 220v3 * 6 / 4 / m2 pure copper cable (optional cable with plug).

11. Opening type: round high-grade start switch.

1.8 channel controlled power output, turn on / off in reverse order.

2. The front two 220V auxiliary outputs.

3. Accurate 220V voltage display. Short circuit overcurrent protection.

4. With pass emergency key, it can be opened in all channels.
