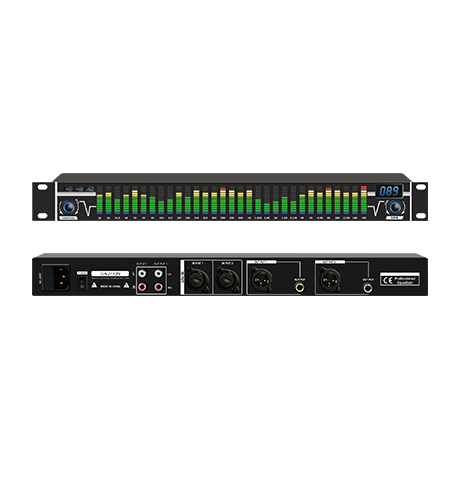

1. Standard 1U light and thin rack

2. Dual channel synchronous control, 31 segment EQ equalization, DSP digital analog integration

3. Led spectrum indication of each equalization band to help users clearly see the tone level in use.

4. Real time 31 segment frequency point hopping, with spectrum accuracy of 99%.

5. Noise reduction function of noise gate with tip to eliminate noise in the system. The threshold adjustment range is built-in fixed.

6. The input / output interface adopts new multi type: trs6 35 / RCA Lotus / XLR XLR cannon balance interface

7. EQ bypass: bypass the equalizer in the signal path

8. With saving and calling function, 10 modes can be saved for calling.

9. Power supply mode: 220V

10. Sound transmission gain: - 1dB or 11db

11. Line input impedance: 15K Ω

12. Line output impedance: 300 Ω

13. Frequency response: 80hz-15khz

14. Signal to noise ratio: 82db

15. Power consumption: 30W

This machine adopts new DSP digital processor technology, which is used in digital analog integration, combined with audio input and output, high-quality processing. The powerful improvement of functional parameters is a big surprise for improving the overall indicators of the sound system, which is better than the traditional manual equalizer. The audio output adopts traditional DOP in-line components to restore all standard music tones.

Applicable to: radio station, multimedia conference room, recording studio, multi-functional entertainment hall, live activity performance system, home theater, hifi sound. Sites with strict requirements for system indicators.
