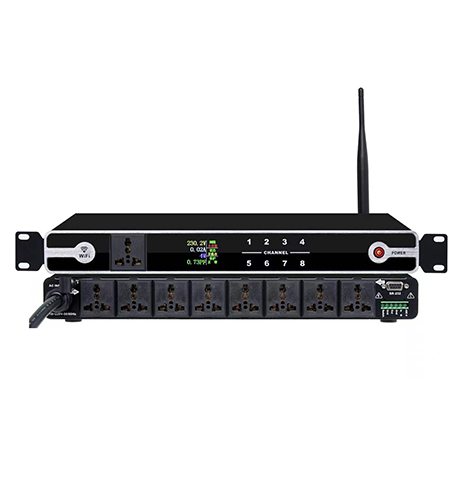

Product features:

1. 1.8. Inch LED color intelligent display window, real-time display of current voltage, current and load. Date and time, 8-Channel switch /wifi status;

2. Timing switch function, built-in clock chip, can be set according to the date and time, without manual operation, making equipment management easier;

3. Mobile app/sr232/ remote control. With overvoltage protection, overcurrent protection and undervoltage protection.

5.8 channel output, plus 1 auxiliary output. The delay opening and closing time of each channel can be set freely (range 0~999s)

6. Built in power meter, real-time display of voltage, current, power and power factor and real-time synchronization of mobile phone

7. One click Network Distribution: under the same WiFi LAN, the network can be distributed through app

8. Power purification function EMI professional grid filter (optional)

Product parameters:

1. Panel color: high grade brushed Black / silver aluminum panel

2. Power input conditions (single-phase 3-wire): ac220-240v 50-60Hz two-phase (three wire: zero, fire, ground)

3. Number of channels: 8-way relay controlled, 2-way universal socket through, single channel rated output current: 13A.

4. The controlled output of the relay can bear the maximum single power / total power (reactive power): 3500w/7000w, the maximum reactive power

5. Specification of output power socket: flame retardant ABS material, which can withstand 13A current at most, phosphor copper material, standard universal socket

6. Switching interval / timing time of each circuit: 1s

7. Output relay contact current: 40A 240VAC

8. Circuit board specification: double sided fiberboard, secondary thickening and thickening of main power wiring.
