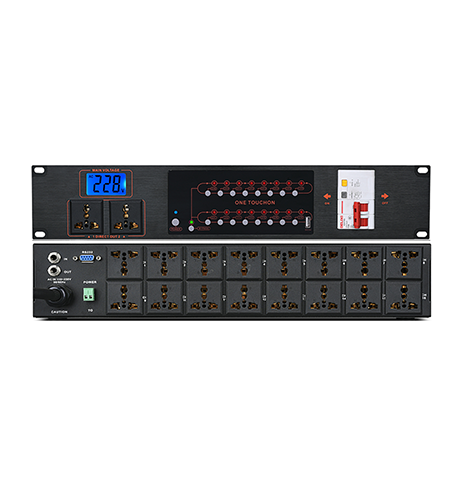

Product features:

1.16 channel controlled power output, turn on in sequence / turn off in reverse order.

2. Front panel 2-way 220V auxiliary output.

3. Accurate 220V voltage display. Leakage short circuit overcurrent protection.

4. Pass emergency key can be opened in all channels.

5. Remote control (external control switch) 16 channel output on / off - effective when one switch lock is in the off position.

6. Cascade stacker function (external control switch can be connected) (optional).

7. Configure RS-232 interface external central control equipment (optional)

8. Power purification function EMI professional grid filter (optional)

Product parameters:

1. Panel color: high grade iron ink panel

2. Power input conditions (single-phase 3-wire): ac220-240v 50-60Hz two-phase (three wire: zero, fire, ground)

3. Number of channels: 16 relays are controlled, 2 universal sockets are connected directly, and single rated output current: 13A.

4. The controlled output of the relay can bear the maximum single power / total power (reactive power): 2500w/5000w, the maximum reactive power

5. Specification of output power socket: flame retardant ABS material, which can withstand 13A current at most, phosphor copper material, standard universal socket

6. Switching interval / timing time of each circuit: 1s

7. Output relay contact current: 30A 240VAC

8. Circuit board specification: double sided fiberboard, secondary thickening and thickening of main power wiring.

9. Power supply specification: built in transformer voltage ac220-240v 50/60hz, optional (switching power supply applies to global voltage ac90-260v) 50-60Hz

10. Specification of main cable: input cable: 220v3*6 square pure copper cable high-power power connector.

11. Opening type: round light touch start switch.
