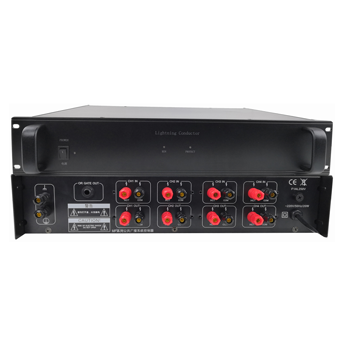

產品型號:ZR-C42B
1. This machine is used for lightning protection, overvoltage protection and leakage protection of broadcasting system
2. 4-channel input/output on-off control
3. Clear normal operation indication and fault protection indication.
4. Number of channels: 1-4 channels can be connected at will
5. Input capacity: 70-200V, 20A per channel (power input)
6. Output capacity: 70-200V, 20A per channel (power input)
7. Overvoltage protection threshold voltage: 350V
8. Rated discharge impulse current I imp (8/20) μ s: Current peak 30KA
9. Leakage protection current: ≥ 10mA
10. Alarm output level: 0V (short circuit)
11. Local protection: AC fuse
12. Power supply: AC 220-240V/50-60Hz
13. Size: 484 * 365 * 88mm
