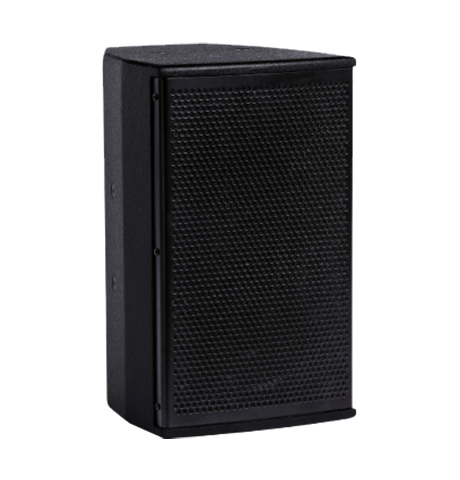

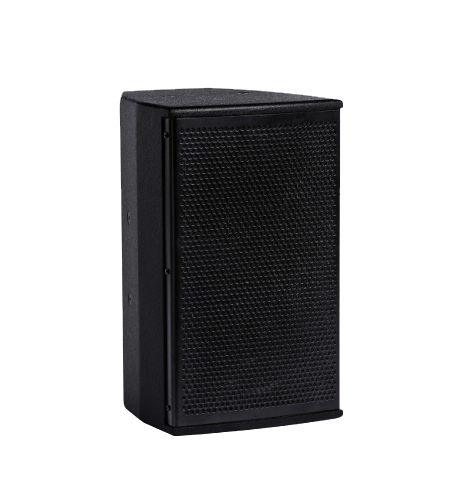

1. Configure 70 ° × 60 ° wide directional horn, the box is made of multi-layer composite splint, water-based environmental protection spraying, high-quality unit configuration, medium fiber density board structure, a variety of hanging points, simple and fast operation. It is used in sound reinforcement places such as language conference system, full frequency sound reinforcement, multi-function hall and high-end hotel club. Small volume, large sound pressure, dynamic and clear language, which can meet different sound reinforcement places.

2. Mid bass speaker: 1 × 15 "(190 mm) Φ 75mm)

Tweeter: 1 × 2.83" ( Φ 44mm)

3. Two frequency divisions are built in the frequency division point, 1.8khz

4. Connection - input: 1 × NL4, output: 1 × NL4

5. Connection mode: ± 1... LHF

6. Box type: trapezoidal box

7. Material: 15mm medium fiber density board

8. Surface treatment - box body: Black / white polyurethane spraying; Surface mesh: Black / white porous powder spraying steel mesh and sound transparent speaker mesh

9. Rated power: 500W

   Continuous power: 1000W

   Maximum power: 2000W

10. Directivity: 70 ° × 60°（H × V）

11. Sensitivity (1W / 1m): 100dB SPL

12. Maximum sound pressure level: 130dB SPL

13. Rated impedance: 8 Ω

14. Frequency response: 60Hz-18KHz

15. Product size (w * D * h): 440W × 484D × 730H

16. Net weight: 27 kg
